Home
Mobile Blockmachines

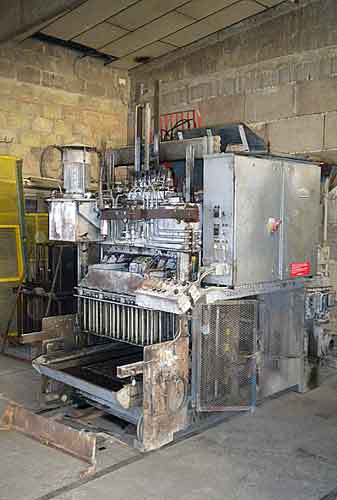

Zenith Mobile Machine 913 VA - Bj. 1971 1. Zenith Mobile Machine 913 KVA, year of construction 1981

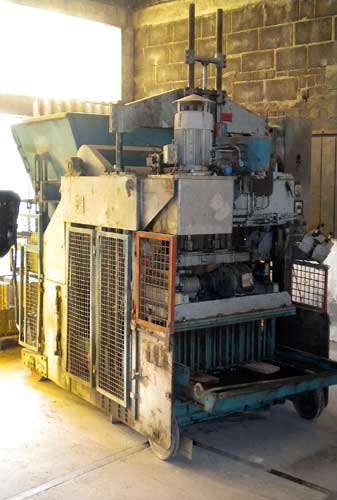

2. Zenith Mobile Machine 913 VA, year of construction 1971

3. Zenith Mobile Machine 913 V, year of construction 1969

Universal machine for the production of blocks, ceiling blocks,
chimney blocks etc.

  • working surface 1240 x 1130 mm

  • product height 175 - 330 mm

  • several moulds

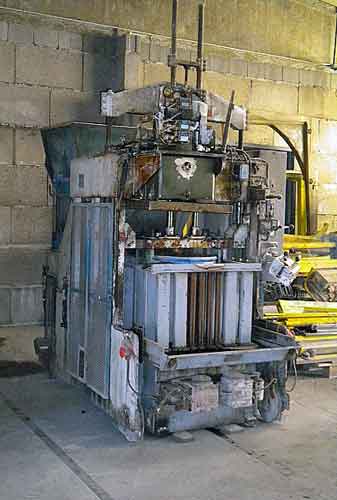

Zenith Mobile Machine 913 V- Bj. 1969
Zenith Mobile Machine 913 KVA- Bj. 1981 H 4 Jotta 2 H 5 Jotta 1

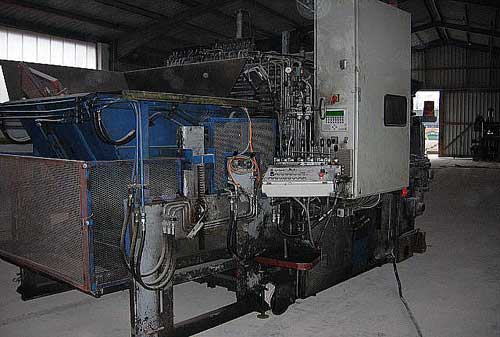

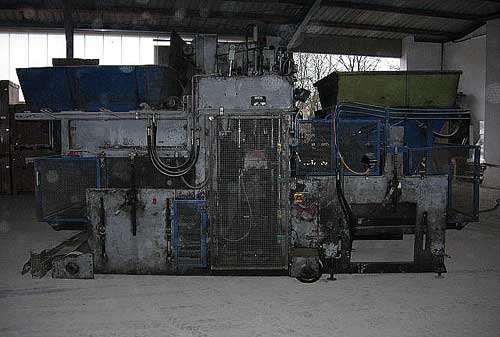

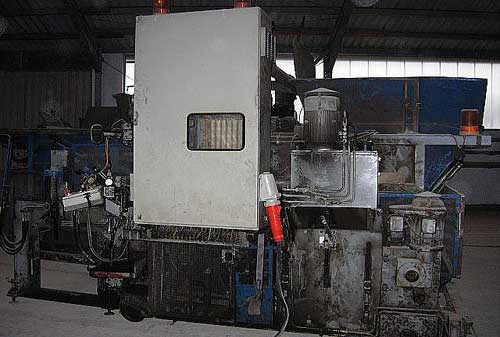

Zenith Mobile machine 939 - year of construction 1982
Universal machine for the production of kerbstones, pavers,
blocks etc.

  • incl. 2nd feeding device

  • separate Vibrationtable

  • working surface 1240 x 1000 mm

  • Productheight 60 - 500 mm

  • several moulds

  • good condition

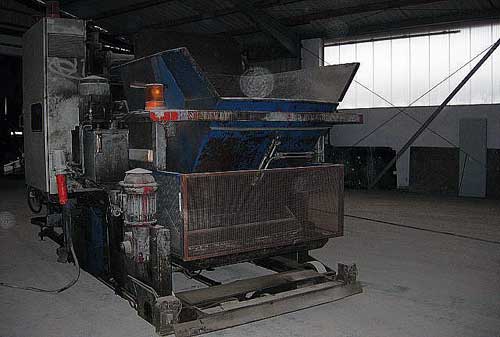

Zenith Mobile machine 939
Zenith Mobile machine 939
Zenith Mobile machine 939 Zenith Mobile machine 939

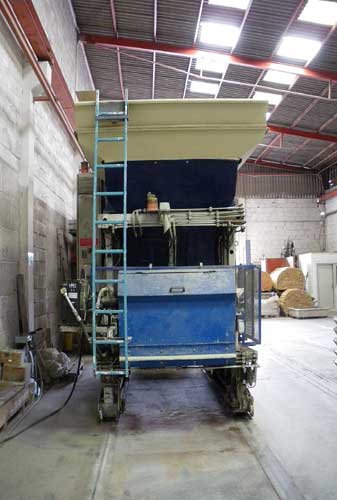

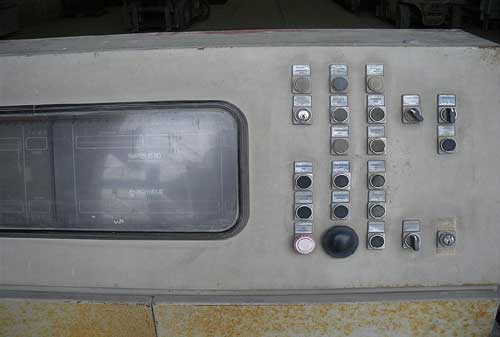

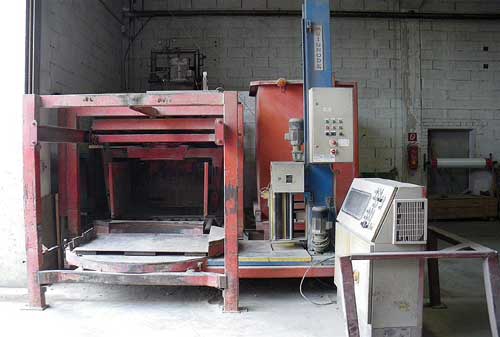

Zenith 940 SAZ mobile multilayer Zenith 940 SAZ mobile multilayer - year of construction 2001
fully refurbished in 2009

  • incl. 2nd feeding device

  • capacity approx. 600 m² per 8 hours shift

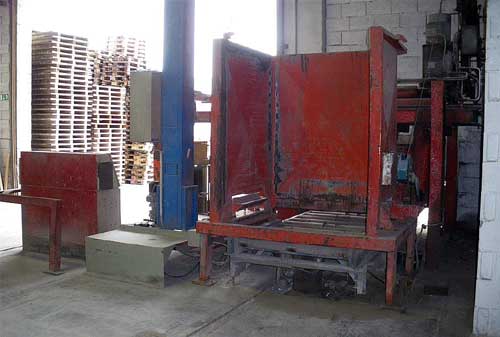

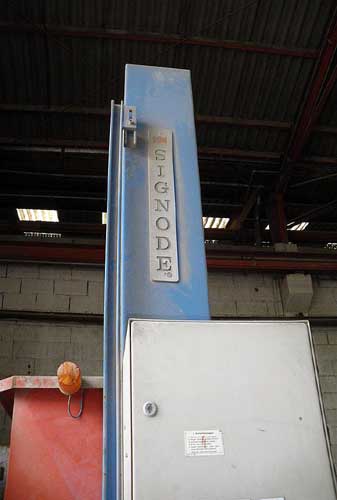

  • incl. stretch film wrappping machine, Type Signode

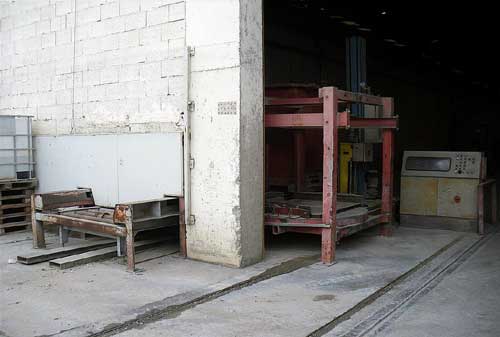

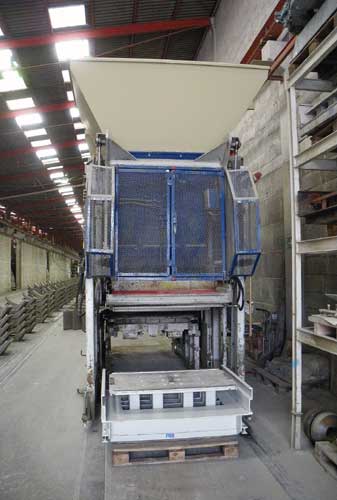

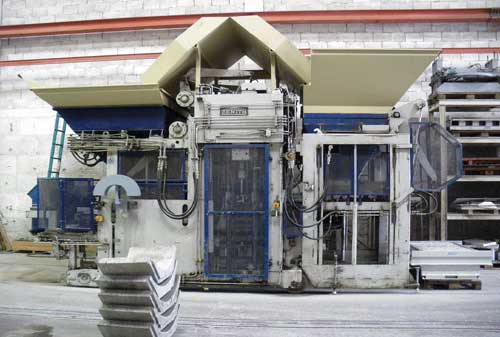

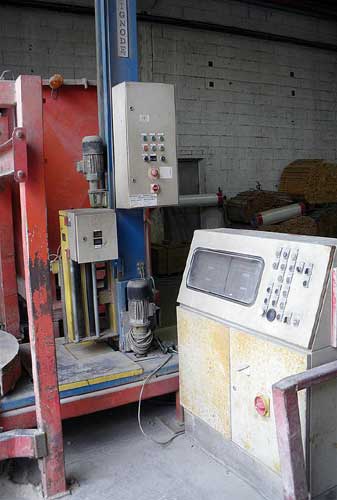

Zenith 940 SAZ mobile multilayer
Zenith 940 SAZ mobile multilayer Zenith 940 SAZ mobile multilayer
Zenith 940 SAZ mobile multilayer Zenith 940 SAZ mobile multilayer Zenith 940 SAZ mobile multilayer
Zenith 940 SAZ mobile multilayer
Zenith 940 SAZ mobile multilayer

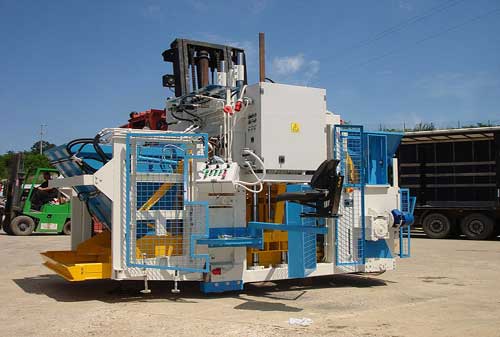

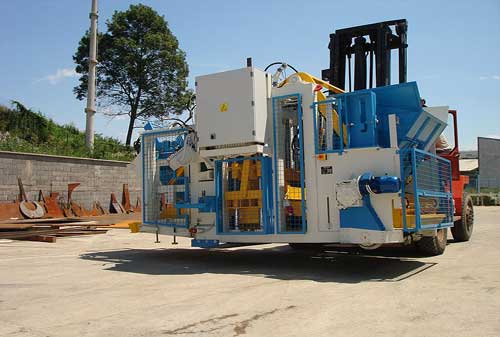

Mobile egglaying machine SB 12 - new machine

Mould attachment dimensions fully compatible to Zenith 913
For the production of blocks, hollow blocks, pavers, interlocks,
U-stones, wallelements, palisades, kerbstones  etc.
The machines are build from proven components. The heavy duty steel
frame allows an easy acces to all components which are designed for
easy maintenance. All processes of the machine are actuated hydraulically.

-    new machine
-    Freely movable
-    Working width                                          1240 mm
-    Working depth with floor manufacturing                  900 mm
-    Working depth with manufacturing on vibrating table     800 mm
-    Product height max:                                     330 mm
-    Product height min. at manufacturing :                  175 mm
-    Product height min. at manufacturing on vibrating table: 60 mm
-    4 mould vibrators a 1,5 KW                            4 x10 KN
-    2 headload vibrators a 1,5 KW                         2 x10 KN
-    Dimensions L x W x H                         3000 x 2200 x 2500 mm
-    Weight                                                5,2 tons
       (without 2nd feeding device, with integrated vibrating table)

Options:

Integrated vibrating table
2nd feeding device
fully automatic execution including PLC
concrete feeding bucket with hydraulical discharge for forklift

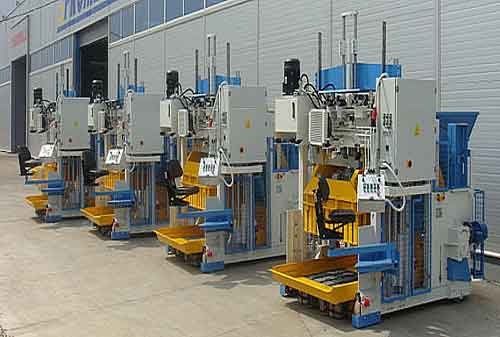

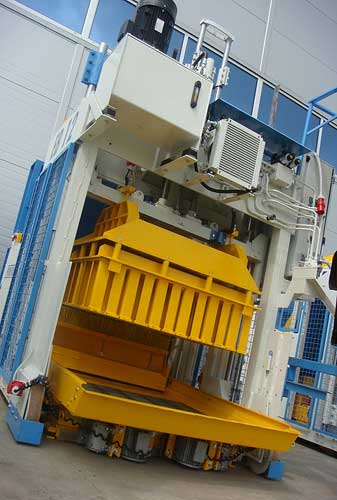

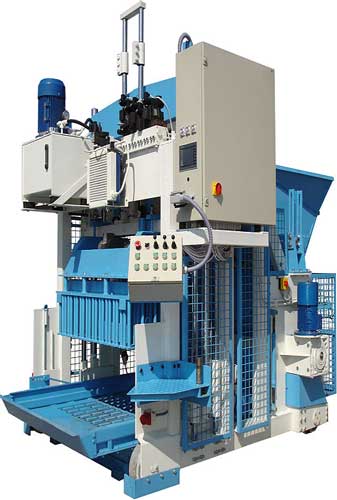

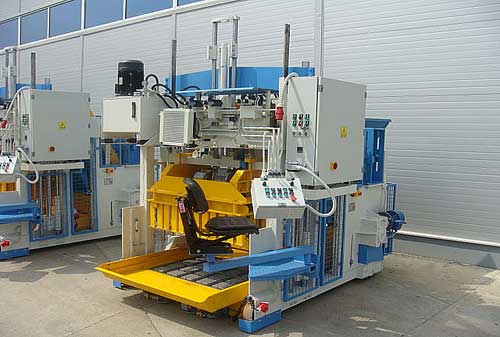

Mobile egglaying machine SB 12
Mobile egglaying machine SB 12
Mobile egglaying machine SB 12
Mobile egglaying machine SB 12
Mobile egglaying machine SB 12
Mobile egglaying machine SB 12 Mobile egglaying machine SB 12

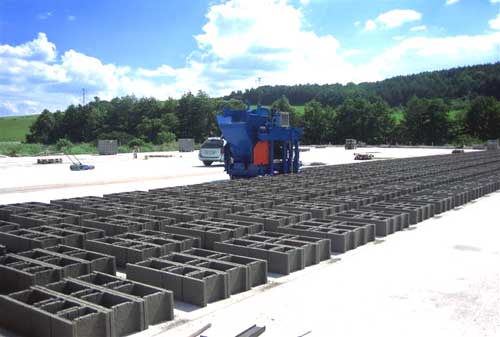

Mobile Blockmachine RAM-S 2000

like new, similiar Zenith 913, fully automatically.

  • for the production of e.g. 10 blocks 40 x 20 x 20 per drop
  • cycle time approx. 35 sec.
  • working surface 1000 x 1000 mm
  • product height: 190 - 280 mm

Machine is completely refurbished, cleaned and painted and put togehter
with new parts.

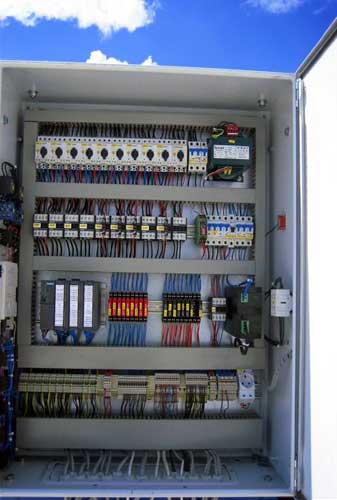

New Siemens S7 PLC, new HW-Hydraulics.

1 year Warranty

Machine complete with:

  • 1 set high frequency headload vibrator
  • 1 set high frequency mould vibrators
  • turning roller to turn the machine
  • 3 block moulds

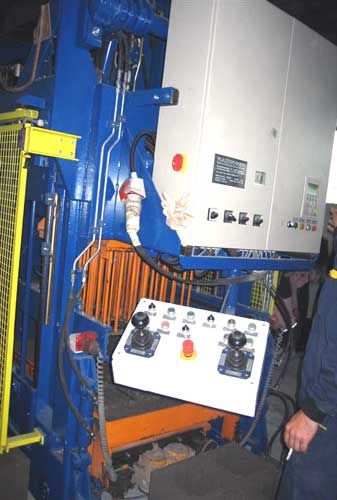

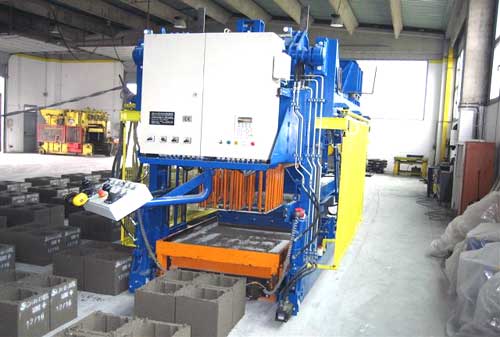

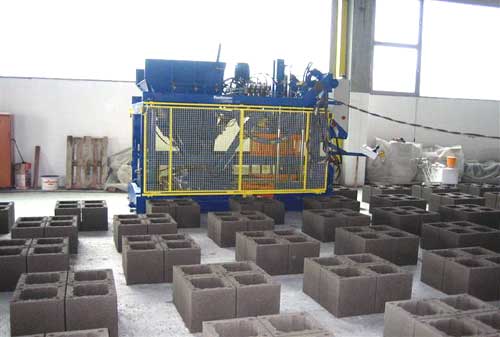

Mobile machine RAM-S 2000
Mobile machiner RAM-S 2000
Mobile machine RAM-S 2000
Mobile machine RAM-S 2000
Mobile machine RAM-S 2000 Mobile machine RAM-S 2000
