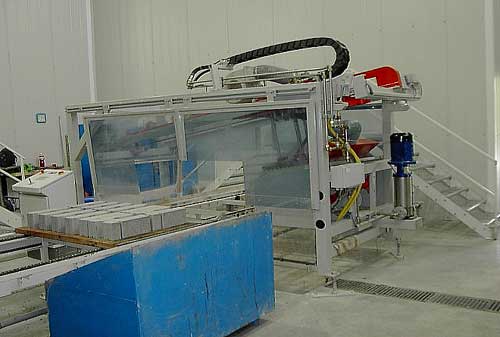

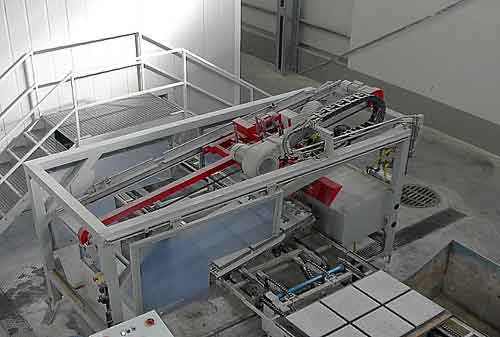

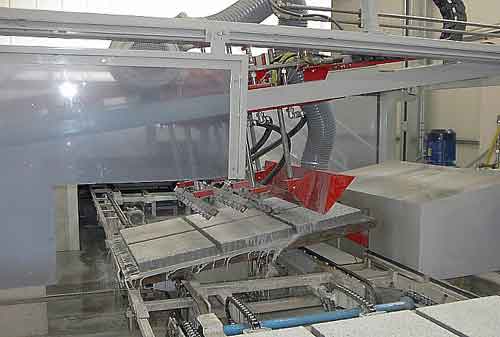

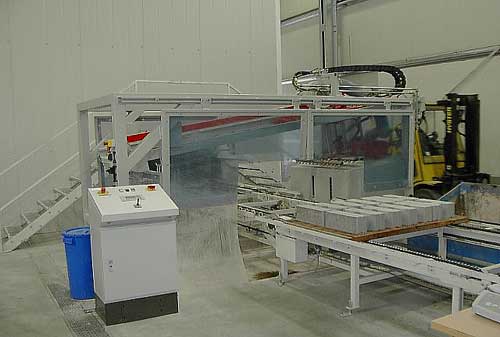

Washing and Spraying Devices

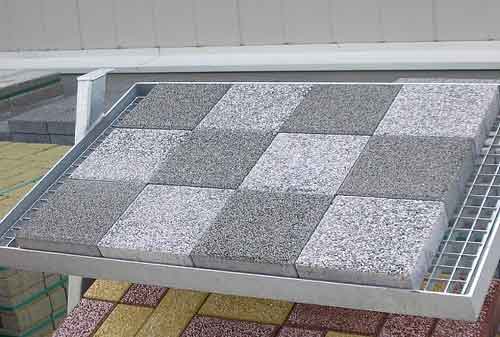

slabs and kerbstones.
Designed as:
- Robust frame with integrated lifting device to lift the pallet into
an oblique position to allow an easy flow off of the washing water.
- The trolley of the spray nozzles is railbounded to allow it a parallel
position to the pallett resp. to the to be washed products.
-The trolley is driven by a frequency controlled drivemotor
- The pressure unit consists of a high pressure pump with drivemotor and
Regulating unit.
- The local pipe connection diameter has to be min. 1" and
the required amount of water is 75 l/min.

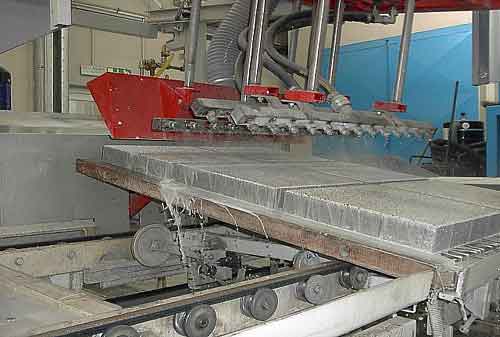

- Oscillating spraying nozzles
-Travelling blow unit to predry pallet and products.
